The Autodesk AutoCAD-BloomCE integration plugin is installed during the CloudEngine install and setup.The BloomCE connector plugin is available from the Add-ins tool bar.

Options

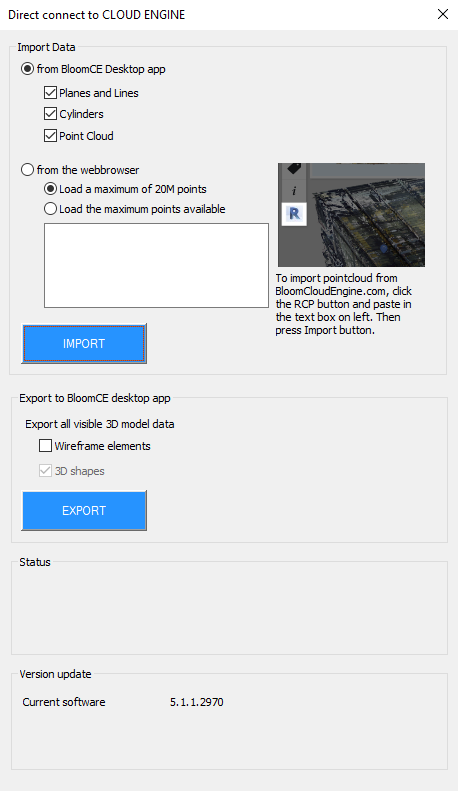

Import and export data from running session of BloomCE desktop. Only the visible data in either applications is exchanged through this interface.


Import

Import visible data from BloomCE

  • Geometry and Annotation: Imports all 2D lines, points, markers and planes and cylinders.
  • Point Cloud: Imports all visible points in the current color using RCP format. The RCP files are located in BloomCE project's asset folder.


After import, close the optionbox and use Zoom Extents to view the data in Autocad.

Export

Export visible and non-frozen layers from Autocad.

  • Wireframe elements: All 2D drawings
  • 3D shapes: All 3D drawings

Versions supported

2020, 2021 2022, & 2023
